Islamic Star Jali Privacy Screen DXF
Download this free Islamic star jali privacy screen DXF file, ready for CNC cutting and instantly resizable to any dimension.
Fabrication specifications
Key parameters verified for laser, plasma, and waterjet cutters.
| Nominal Dimensions | 1746 × 2092 mm | Default size of the panel in downloaded file |
| Total Cut Length | 84.28 m | Total cutting path across all internal cutouts and exterior contours |
| Pierce Count | 160 points | Count of discrete closed loops, affects the cut time |
| Opacity | 47% | Determines visual privacy rating and shade factor |
Estimated cutting time and cost
8 kW laser cutting machine rated at €866/hour. You can use these estimates for instant quoting.
| Material | Thickness | Cutting Speed | Cutting Time | Estimated Work Price |
|---|---|---|---|---|
| Mild Steel | 2 mm | 9.0 m/min | 9m 22s | €125 |
| Mild Steel | 3 mm | 6.0 m/min | 14m 3s | €188 |
| Stainless Steel 304 | 2 mm | 10.0 m/min | 8m 26s | €113 |
| Stainless Steel 304 | 3 mm | 5.5 m/min | 15m 19s | €204 |
| Aluminum 5052 | 2 mm | 11.0 m/min | 7m 40s | €103 |
| Aluminum 5052 | 3 mm | 6.5 m/min | 12m 58s | €173 |
| Corten Steel | 2 mm | 8.5 m/min | 9m 55s | €132 |
| Corten Steel | 3 mm | 5.5 m/min | 15m 19s | €204 |
You can see exact breakdown and pricing for your material stock and your machine park after you set up Feinerfab for your workshop
TRY NOWMounting notes

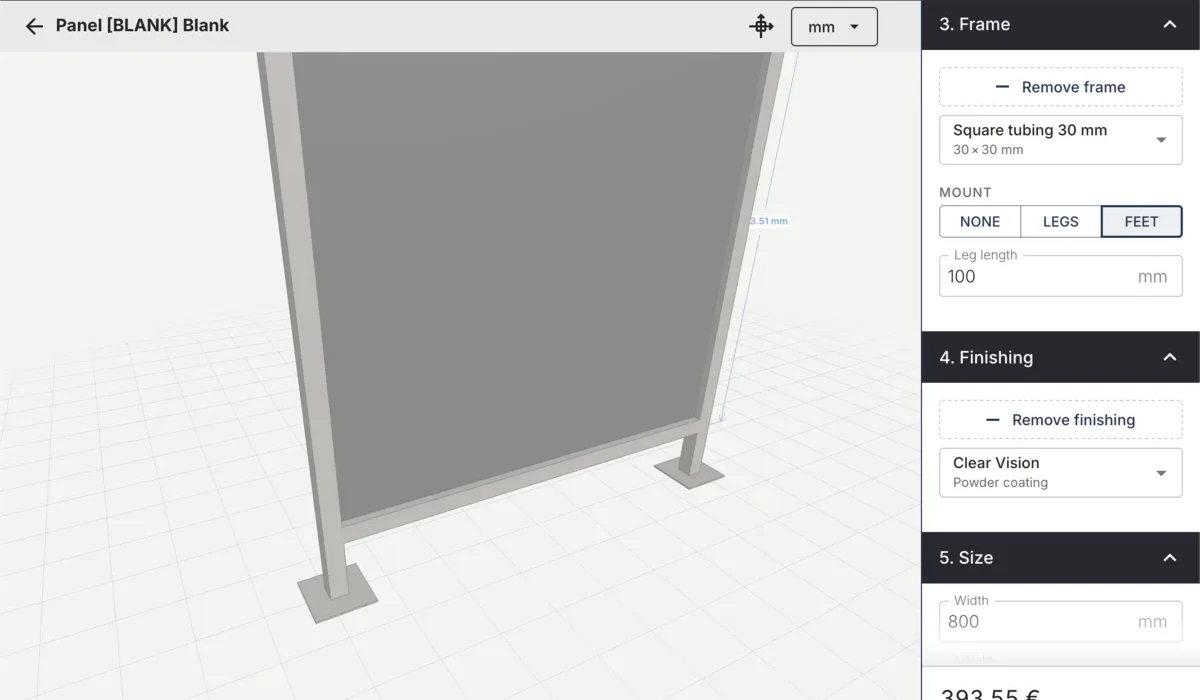

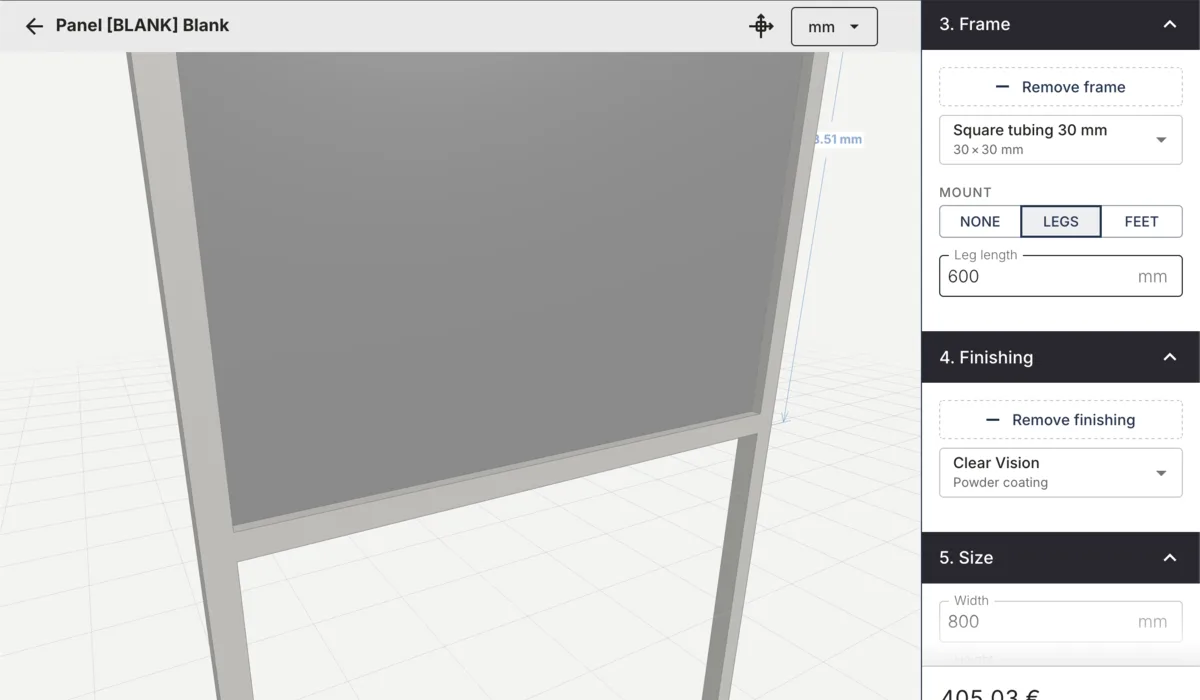

All files come with a solid perimeter frame. Feinerfab also lets you add custom framing options (defined by you), as well as mounting options — bolt-through feet or legs with variable height.
Simple license
Use to produce, don't resell or claim ownership.
What you can do
- Cut and sell physical parts: manufacture privacy screens, decorative panels, fences, and other physical products based on this library for commercial clients or retail sale.
- No royalties or licensing fees: you keep 100% of your fabrication and manufactured items sale revenue.
- No attribution on physical parts: you do not need to credit Feinerfab anywhere, if you only use the file directly to produce a physical part.
- Modify for fabrication: freely change, remix, or incorporate into custom assemblies, if you only use the file directly to produce a physical part.
What you cannot do
- Do not redistribute digital vectors: you may not sell, license, or distribute the DXF, or SVG cut files directly. Link to https://www.feinerfab.com/dxf-files instead.
- No vector library bundling: you may not upload these files to other sites including (but not limited by): digital stock repositories, cut file aggregators, or design marketplaces.
- No claim of digital ownership: do not claim original digital authorship of the file and derived works.
Related DXF patterns
Similar in style to this one.
Questions and answers
A few more things to know.
Our DXF files use standard R12/AutoCAD ASCII polylines compatible with AutoCAD, Autodesk Fusion 360, ArtCAM, SolidWorks, Rhino, LibreCAD, Inkscape, Illustrator, CorelDraw, and all major CNC CAM nesting engines including CypCut, LightBurn, SheetCAM, ProNest, and Vectric Aspire.
Yes. Every path is formed from clean closed polylines without stray open segments, zero-length entities, self-intersecting loops, or duplicate overlapping lines. Bridge widths and apertures have been verified to exceed minimum thermal tolerance thresholds.
You can scale the DXF proportionally in any CAD or CAM tool. If you need non-uniform scaling or want to adjust panel width and height while keeping aperture size and bridge widths constant, our parametric configurator can regenerate the DXF to your exact millimeter dimensions.
No. The DXF represents true nominal design geometry (centerline/finished part contour). Kerf compensation should always be applied inside your CNC machine's CAM or nesting controller (such as CypCut, Trumpf TruTops, or SheetCAM) according to your specific nozzle diameter, beam kerf width, assist gas, and material thickness.
Yes! You have a perpetual, royalty-free commercial fabrication license. You can cut, powder-coat, and sell physical screens, architectural panels, gates, railings, and signs to clients without attribution. Only the redistribution or resale of the digital vector file itself is prohibited.
